H-9012-900 Coolant Rotary Joint

The H-9012-900 coolant rotary joint is a compact, bearingless, single-passage rotary joint developed for cooling applications on automatic production lines.
Adopting a silicon carbide balanced mechanical seal and a full-flow passage design, it features a small size suitable for limited installation space.
Dry running is not allowed; it is designed for continuous coolant delivery on machine tool automation lines.

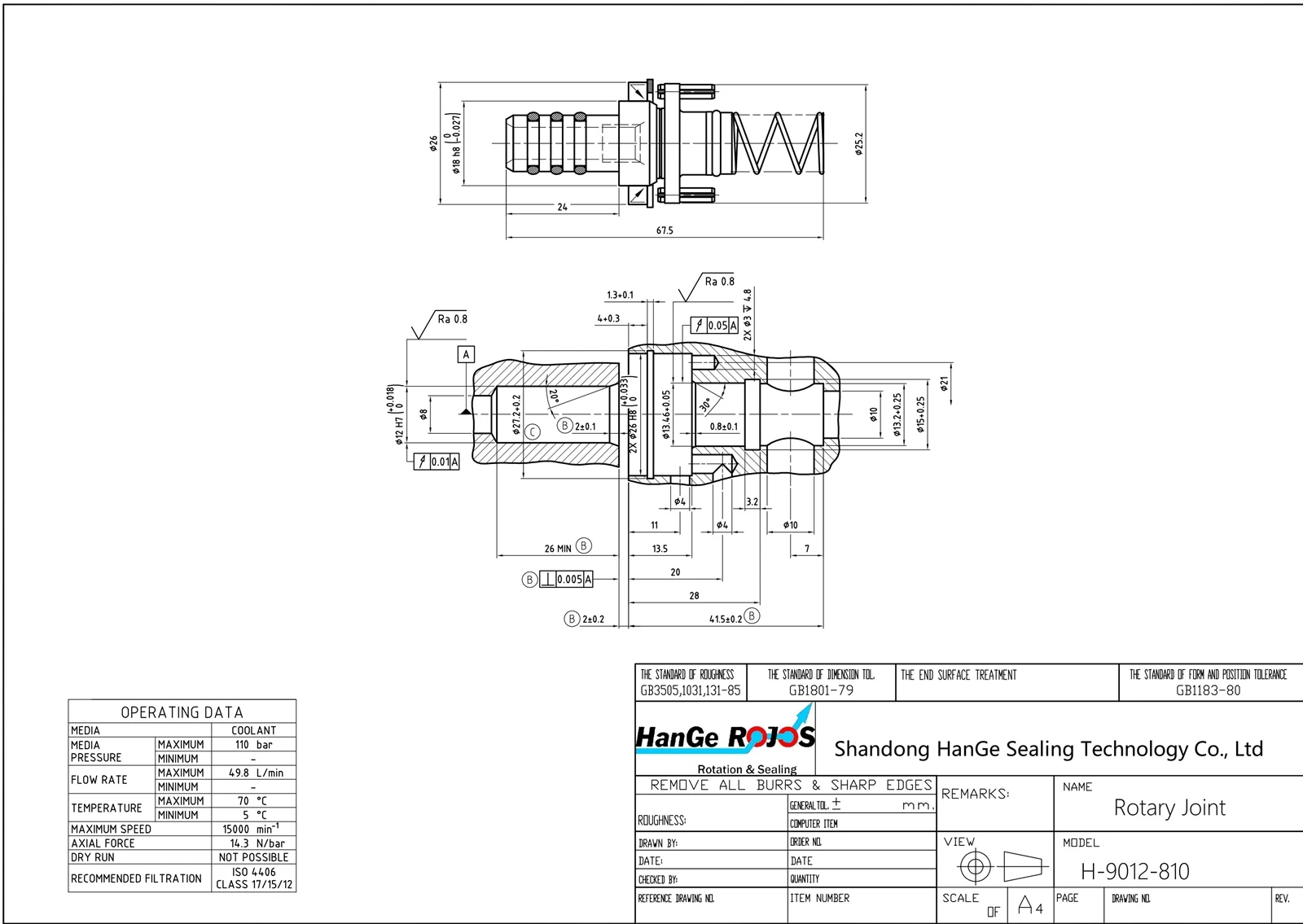

product drawing



product-1-1



product parameters



Technical Parameters

Medium

Coolant

Max. Temperature

70℃

Min. Temperature 5℃

Max. Pressure

110 bar

Max. Speed

15000 RPM



product features

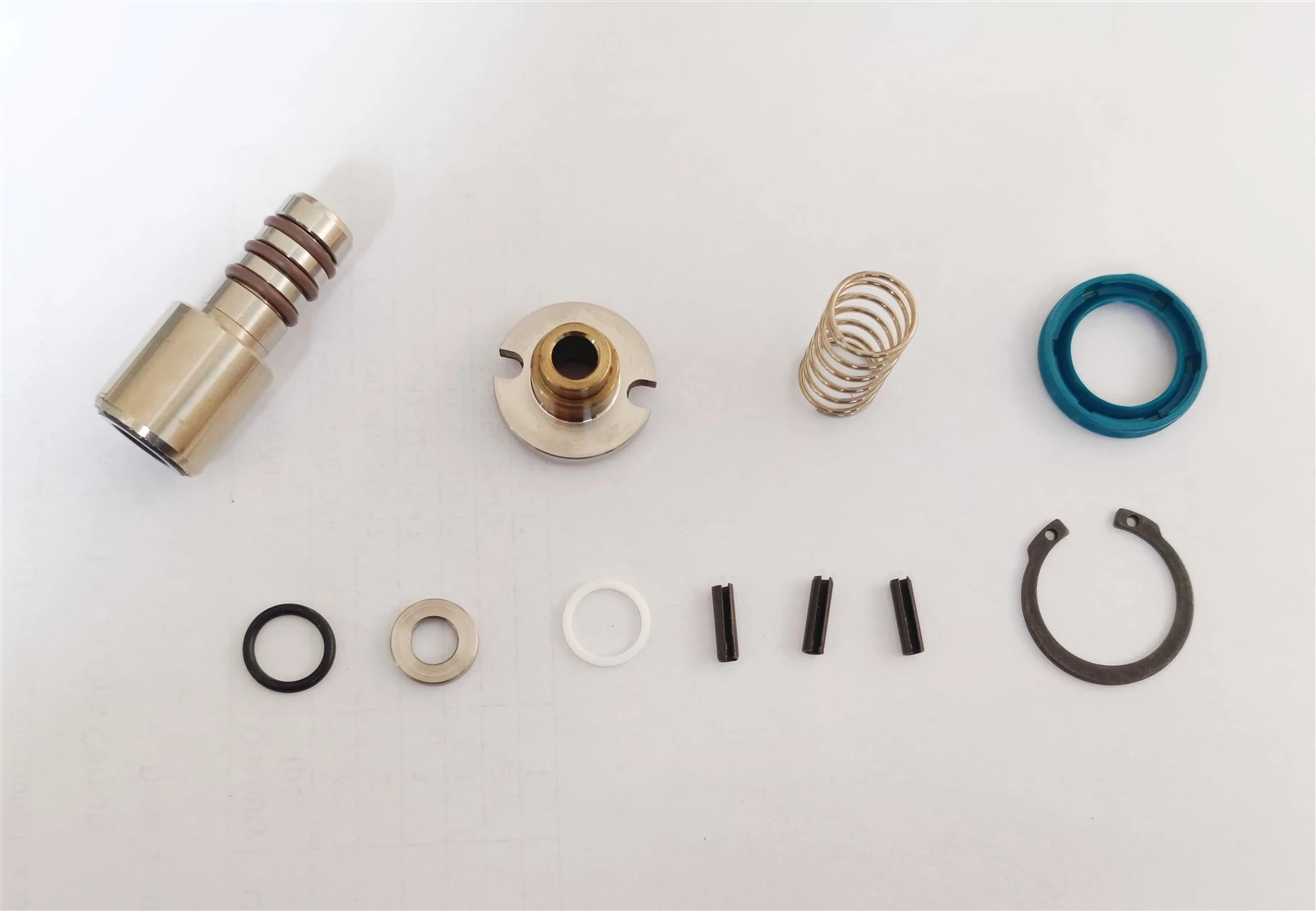

202610050835027117

Single-passage structure

Closed-sealing design for automatic production lines

Bearingless construction

Compact build for minimal installation space

Full-flow passage design

Silicon carbide balanced mechanical seal

Dry running is not permitted; continuous medium supply is required



FAQ





Q: Can this rotary joint run dry?

A: No. This bearingless unit must be continuously lubricated and cooled by coolant during operation. Dry running will burn out the seal faces immediately.

Q: What kind of equipment is it suitable for?

A: It is mainly used for machine tool cooling circuits on automatic production lines and for high-speed cooling applications with limited installation space.

Q: What is the advantage of the full-flow passage?

A: The full-flow design ensures an unobstructed passage and prevents the buildup of impurities and residue.
