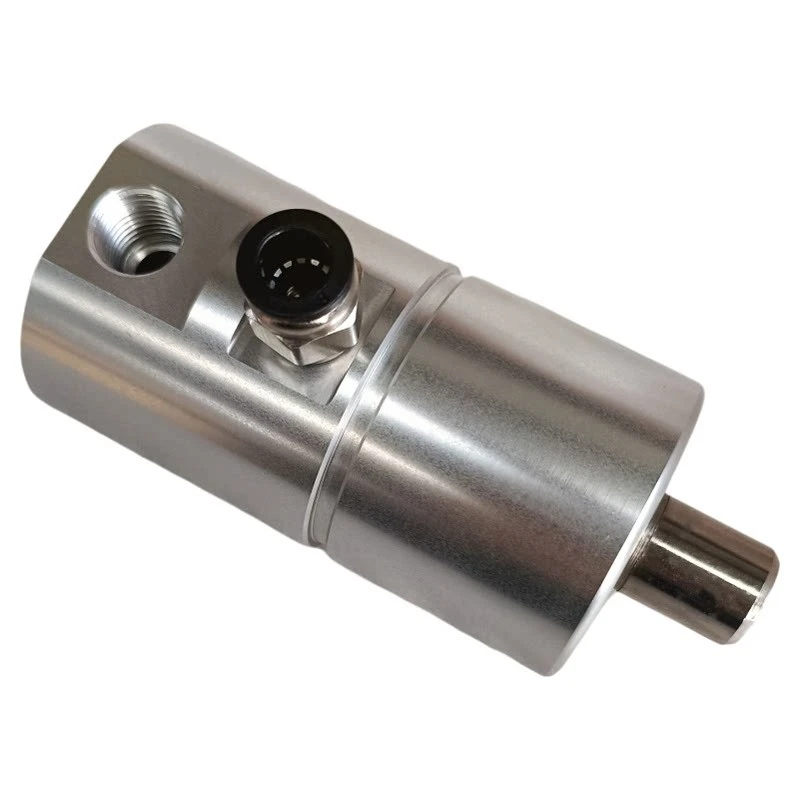

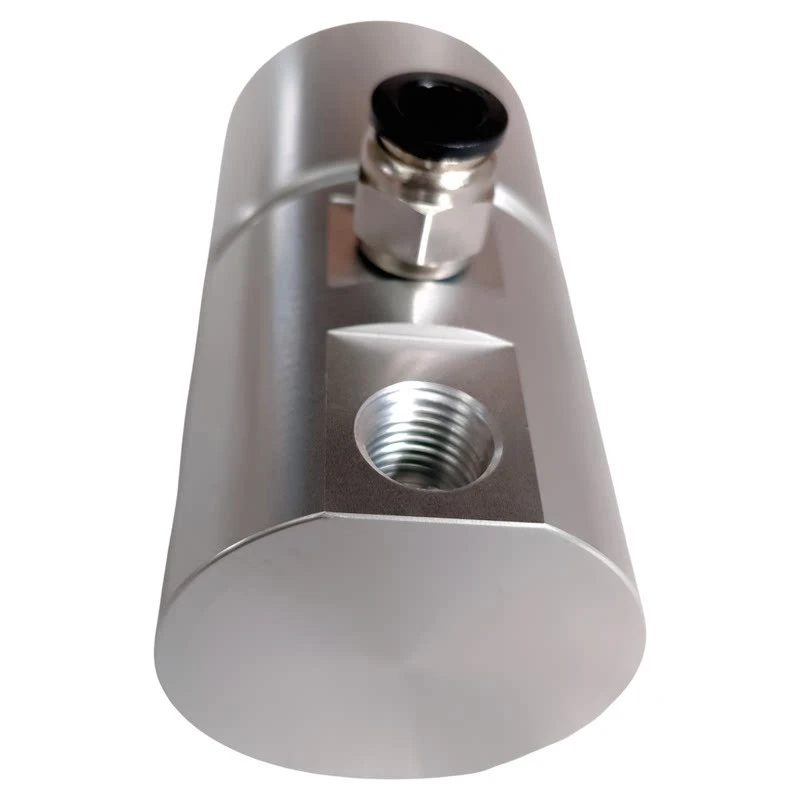

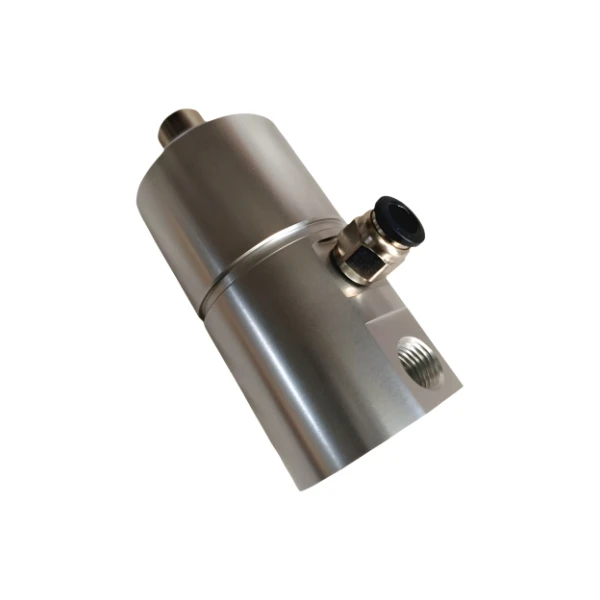

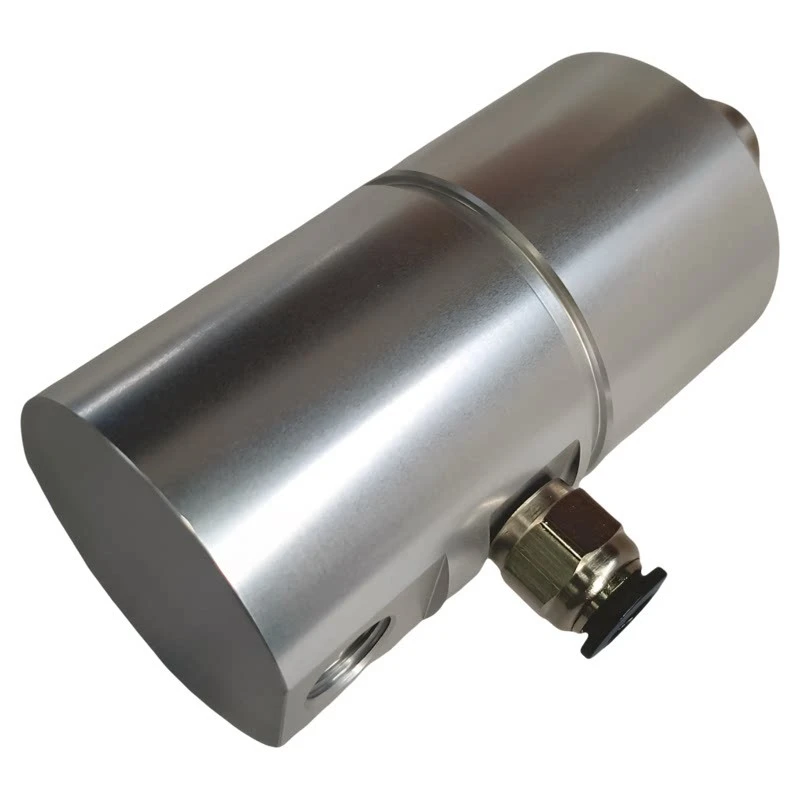

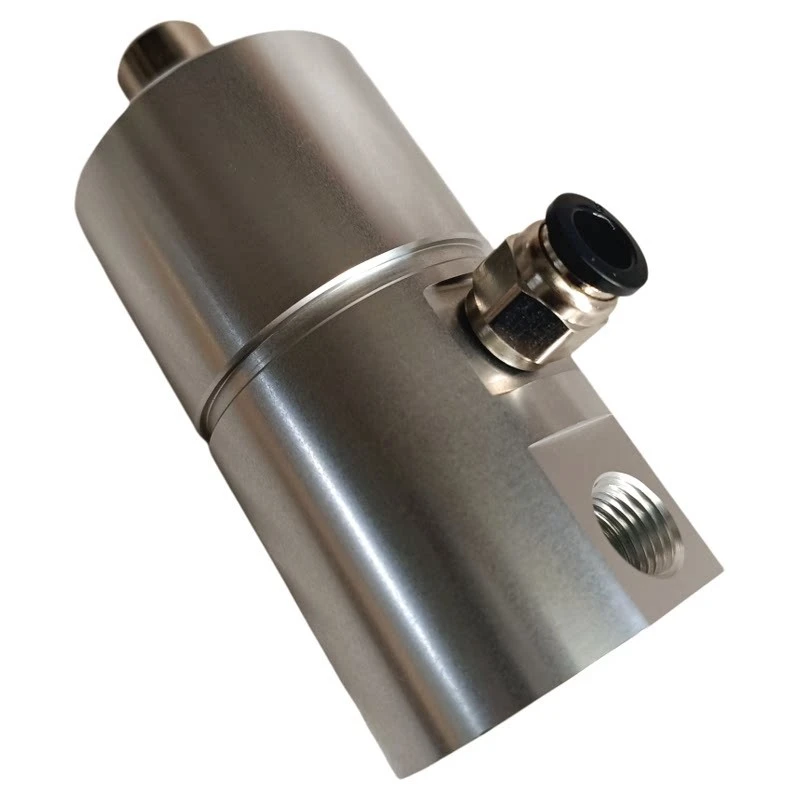

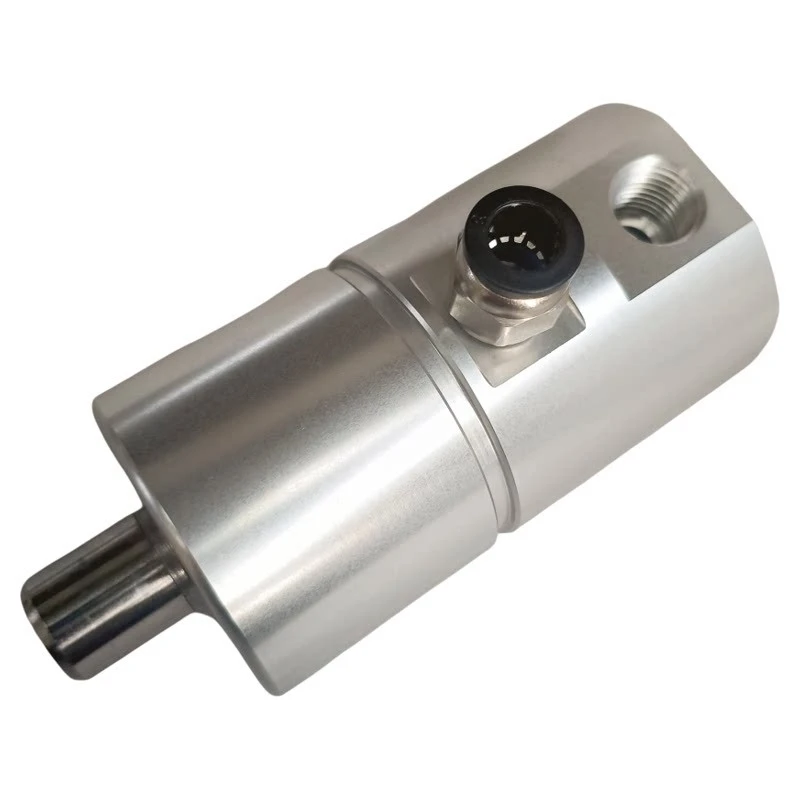

B08-1602-01E Rotational Joint For Machine Tool Spindle
The B08-1602-01E rotary joint is designed for machine tool spindles and serves as a replacement for the ROTOFLUX rotary joint.
It is specially developed for high-speed machine tool spindle applications.
It permits dry running with a radial connection and is suitable for conveying coolant, MQL, and compressed air for CNC spindle cooling and lubrication.
product drawing
product parameters
|
Technical Parameters |
|
|
Medium |
Coolant, MQL, Air |
|
Max. Temperature |
90℃ |
|
Max. Pressure |
100 bar for coolant; 10 bar for MQL & Air |
|
Max. Speed |
20000 RPM |
product features
Designed for high-speed machine tool spindles
Anodized aluminum housing for light weight and corrosion resistance
Stainless steel rotor for stable high-speed performance
Dry-running capability
Radial connection for convenient spindle-side installation
FAQ
A: It has the same interface dimensions for direct interchange. Please verify the spindle mounting dimensions before installation.
A: Yes, dry running is available for MQL applications. For continuous coolant service, sufficient fluid lubrication is recommended to extend seal service life.
A: Maintain good shaft alignment and reduce vibration. Use shock-absorbing piping to avoid extra radial load on the rotary joint.
