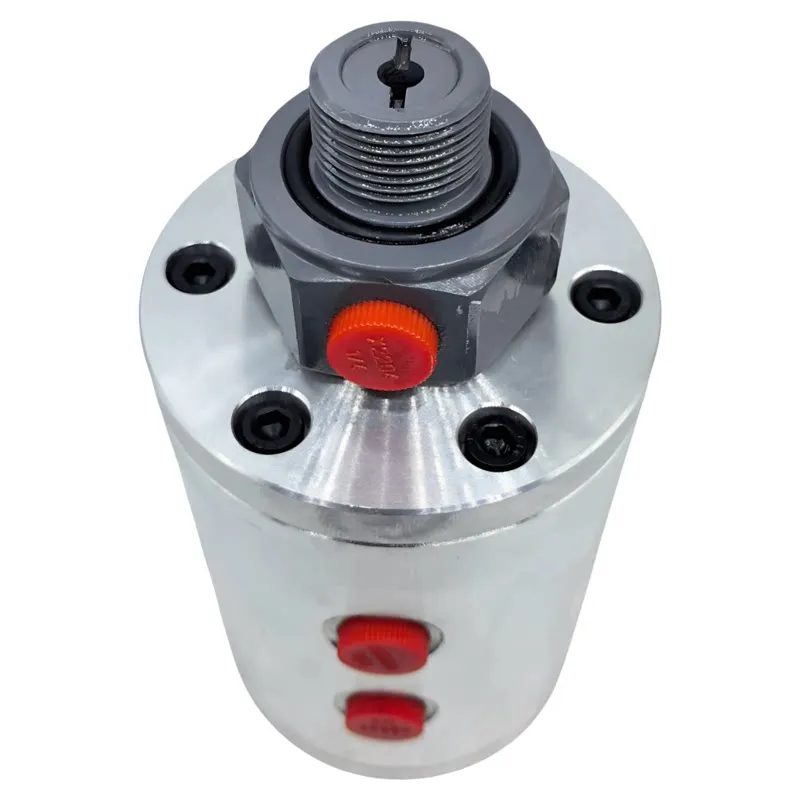

Alternative To DEUBLIN 7100-773 Rotary Joint
This product is a direct replacement for the DEUBLIN 7100-773, a dual-channel self-supporting rotary joint. It features a hydraulic bearing design with wear-resistant bearings, an aluminum housing and a steel rotor for stable and durable performance. It is specially designed for rotary applications using hydraulic oil and can be used as a direct replacement in terms of installation and performance to meet stable operation requirements.
product drawing
product parameters
| Technical Parameters | ||
| Channel | P1/P2 | L1.L2 Leakage Hole |
| Medium | Hydraulic Oil | |
| Max. Temperature | 80℃ | |
| Max. Pressure | 300 bar | 0.5 bar |
| Max. Speed | 1000 RPM | |
| Weight | 3.3kg | |
| Material | Aluminum Housing+Steel Rotor | |
product features
Direct replacement
Matches the structure, dimensions, and mounting connections of the DEUBLIN 7100-773 for direct interchange.
Dual-channel design
Independent dual passages for stable bi-directional / dual-circuit hydraulic oil transmission.
Self-supporting structure
Self-supported for easy installation and good coaxiality tolerance.
Hydraulic bearing system
Stable load capacity, smooth rotation, low wear, and long service life.
Reliable material
Lightweight aluminum housing and high-strength steel rotor, combining durability and ease of installation.
Stable performance
Works reliably under 300 bar high pressure, 1000 RPM, and 80°C oil temperature.
FAQ
A1: It is suitable for hydraulic oil and medium‑high pressure, medium‑speed hydraulic rotary equipment.
A2: The hydraulic bearing with wear‑resistant bearings ensures smooth rotation and high pressure resistance, ideal for continuous rotary operation.
A3: They drain a small amount of leaked medium to protect bearings and seals, extending the service life of the joint.
A4: Keep the mating surface clean and flat, ensure good coaxiality, and tighten to the standard torque for stable operation.
